Compact straddle leg pallet stacker

Versatile stacking for tight spaces

The compact electric straddle leg stacker truck, with built-in lithium-ion technology, is a flexible and cost-effective solution for internal pallet handling in light-duty applications. Ideal for stock rooms requiring an on and off truck for simple load movements.

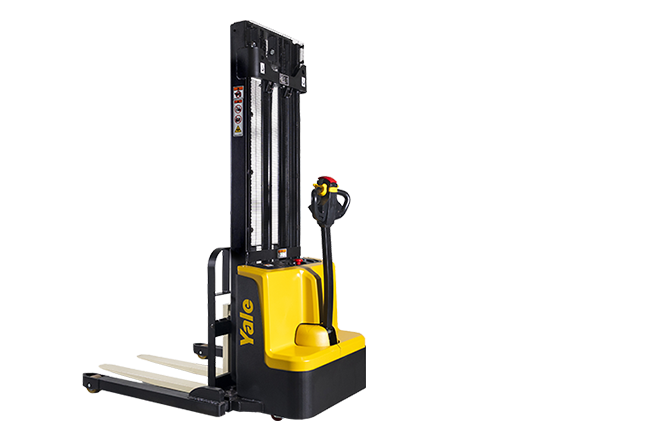

product image

Models

MSW12-15UX(L)

Capacity

1200-1500kg

Start a quote
Browse other models

Compact electric stacker

Maneuver pallets efficiently in narrow aisles and tight spaces

Lithium-ion battery technology

The compact electric straddle leg stacker brings the benefits of a standard 24V 60Ah lithium-ion battery to pallet stacking operations, supporting operators with added power, optimizing efficiency, and delivering a cost-effective solution.

  • The reliable lithium-ion battery technology delivers 2.5 hours runtime (depending on application/conditions), high performance levels, and a long service life.
  • The battery is located at the bottom of the truck’s frame to help support stable and reliable operation.
  • The on-board lithium-ion charger and easy access plug allows the stacker to be plugged in anywhere.
  • The battery indicator and recharging alert puts operators in control and helps warehouses opportunity charge the stacker, maximizing operational uptime, with the battery achieving full charge in as little as four hours.
Ergonomic controls

This Yale electric pallet stacker is ergonomically designed to help improve the operator’s working conditions, alongside efficiency.

  • With a multifunctional tiller handle, butterfly controls and a smart display, it is effortless and easy to operate, with optimal maneuverability for warehouse and storage environments.
  • The long, off-center positioned tiller supports safe and convenient operation and over 180 degree turning radius
  • The handle design empowers the operator to perform all travel and lift functions with either hand.
  • An emergency disconnect switch, on-board charger plug, start function, and a storage compartment are all located centrally for convenience.
Proportional lifting

The electric straddle leg stacker truck features variable speed control for lifting and lowering, heightening control, precision, and accuracy. This proportional lifting helps reduce shocks and vibrations, reducing noise levels while supporting smooth operation.

The operator experience is enhanced with a more comfortable working environment, supporting safe handling best practices and high efficiency.

Fault code display and alert

This electric stacker simplifies troubleshooting, to help support uptime. The tiller handle features a single operational display, which includes operational status and fault diagnosis including the battery power status, charging status, and any fault codes.

Ease of maintenance is supported further by simple access to all main components, and the support of a comprehensive Yale spare parts and service network.

Resources

Downloads

Specifications

Model Load Capacity Load Centre Lift Height Turning Radius Battery Capacity Weight
MSW12UX(L) 1200kg 600mm 3500mm 1455mm 24V/60Ah(V/Ah) 718kg
MSW15UX(L) 1500kg 600mm 3500mm 1455mm 24V/60Ah(V/Ah) 719,6kg
