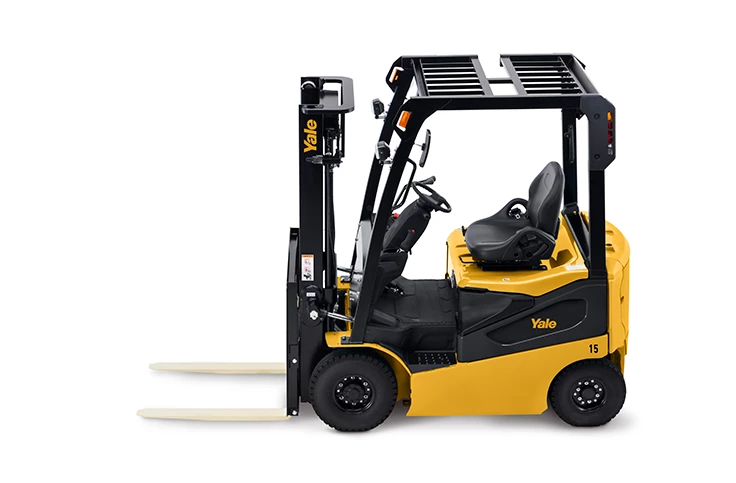

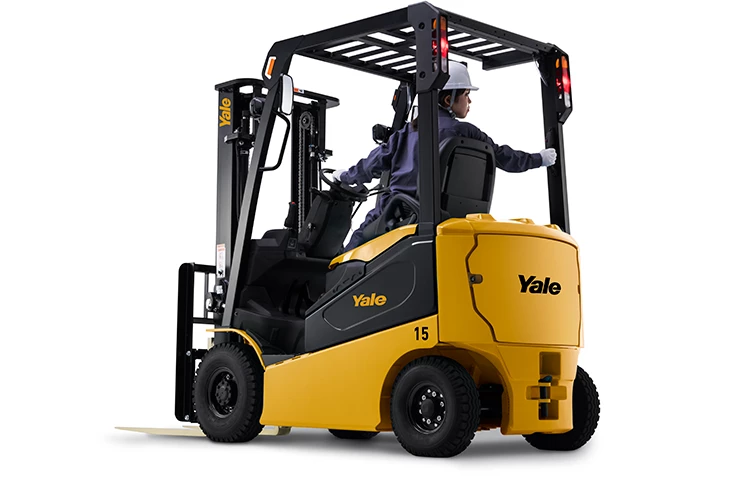

4 Wheel Electric Forklift Truck Pneumatic Tyre

Power, increased battery life and performance for demanding applications

Models
FB15-35RZ 2
Capacity
1500-3500kg

The FB15-35RZ 2 counterbalanced lift truck combines the power, clean performance and battery life modern operations require, all with advanced technology to keep business running smoothly, shift after shift.

  • Powerful performance
  • Ergonomic advantages
Industry Sectors

-3PL & Warehousing
-Auto Parts Distribution
-Beverage
-Cold & Frozen Foods
-Food Distribution
-Food Processing
-Health & Pharma
-Home Centers & Other Durables
-Rental Stores
-Retail & E-Commerce (DC/Fulfillment)
-Trucking

Ask the Experts

Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.

Start a Quote

Get the productivity, advanced technology and clean performance you require

Modern electric lift truck designed to meet the demands of today's operations

Powerful performance

The FB-RZ counterbalanced lift truck series is packed with electric power and productivity enhancing features your operation needs to meet ambitious performance targets.

  • AC controlled traction and hoist / steer motors provide rigorous performance to meet material handling needs
  • Regenerative braking charges battery during brake cycles to extend battery life
  • Adjustable performance modes to deliver right mix of energy efficiency and productivity to optimize operating cost
  • Battery life extends from up to 8.5 hours to up to 9.5 hours in Eco mode
  • Automatic speed reduction based on load and steering angle
Ergonomic advantages

In high-throughput logistics operations, lift truck operators must perform at their peak, all shift long. The FB-RZ series delivers ergonomic advantages to help maximize labor efficiency.

  • Operator compartment offers easy access, cushioned seat and space for operator comfort
  • Asynchronous and power assist steering ensures alignment between rotation of steering wheel and tires, enabling wheel to always return to same center position
  • Operator presence system will disengage truck function if operator leaves seat
  • Wide inner mast clearance optimizes mast visiblity for greater operator efficiency
  • Carriage light eminates from just above forks to illuminate workspace when operating at height
  • Blue pedestrian awareness light provides an additional alert to pedestrian and mobile equipment operators that forklifts are nearby
Model Load Capacity Load Centre Lift Height Turning Radius Battery Capacity
FB18RZ 2 1800kg 500mm 6025mm 1875mm 48V / 390-525Ah(V/Ah)
FB20RZ 2 2000kg 500mm 6035mm 1990mm 48V / 440-700Ah(V/Ah)
FB20SRZ 2 2000kg 500mm 6030mm 1910mm 48V / 390-525Ah(V/Ah)
FB25RZ 2 2500kg 500mm 6035mm 2035mm 48V / 565-700Ah(V/Ah)
FB30RZ 2 3000kg 500mm 6025mm 2190mm 48V / 440-600Ah(V/Ah)
FB35SRZ 2 3500kg 500mm 6030mm 2255mm 48V / 440-600Ah(V/Ah)
