Low Level Order Picker
Designed for Efficiency
- Models
- MO20-30X
- Capacity
- 2000-3000kg

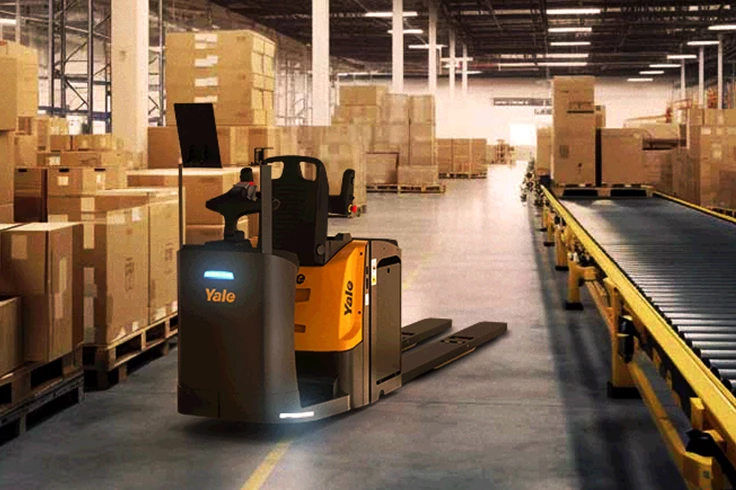

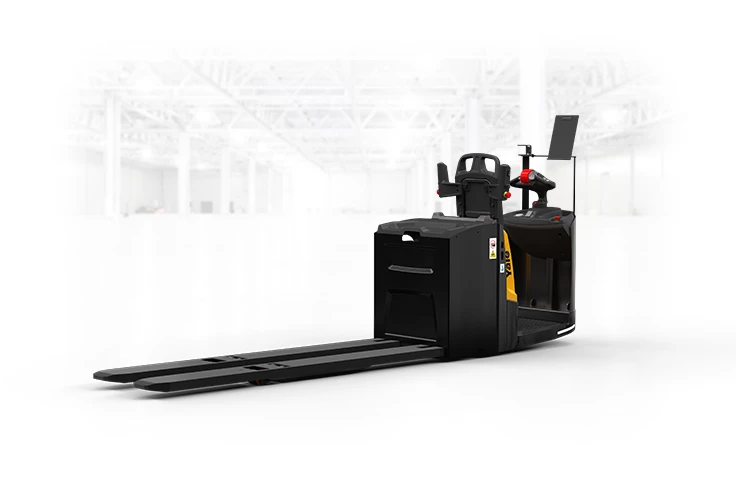

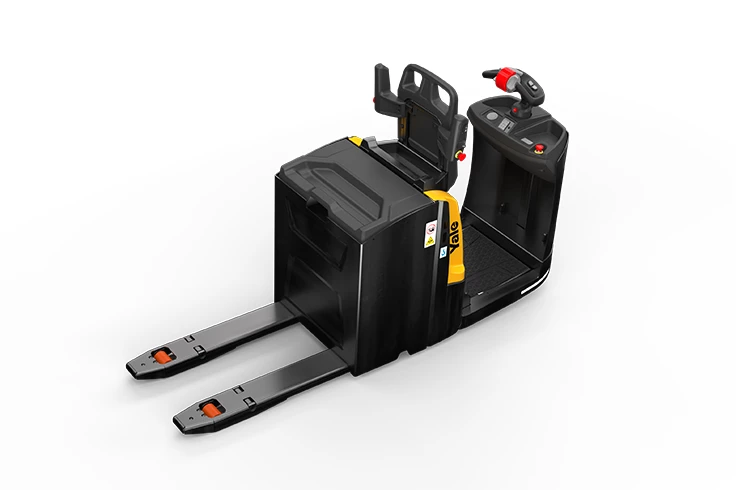

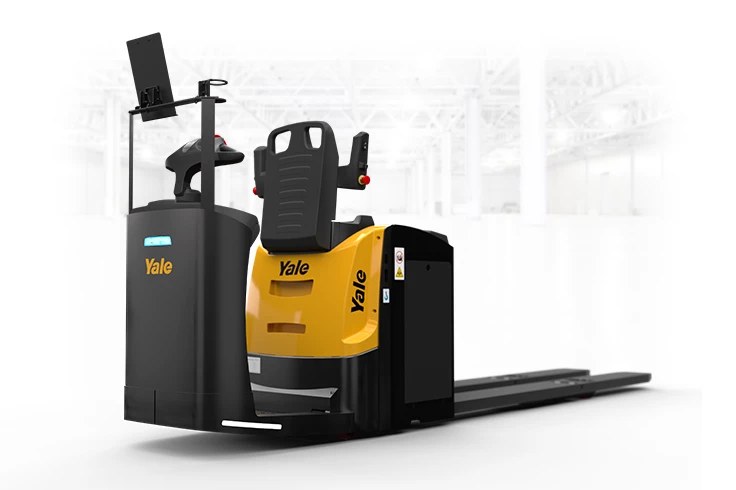

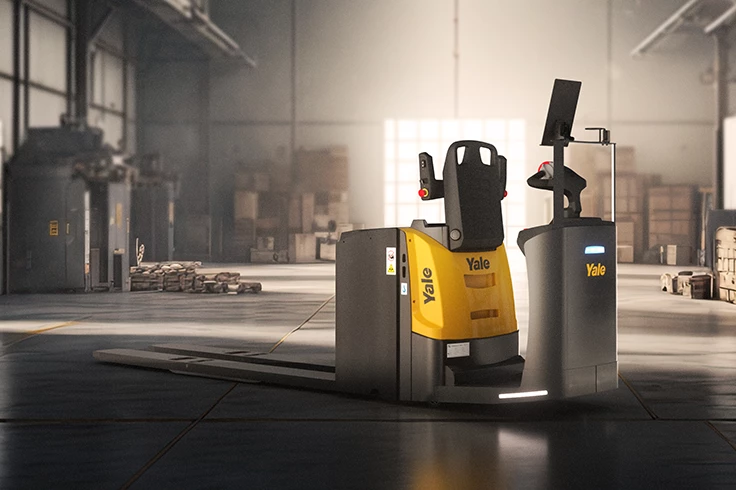

The all-new Yale® Low Level Order Picker is built to be tough, intelligent, dependable and efficient. Designed for horizontal transportation efficiency in medium to high-intensity applications, it excels in confined spaces. Using the extended forks option up to two pallets or three Euro pallets crosswise can be easily transported.
- Increased productivity
- Reliable performance
- Easy to maintain
The Yale MOX Series is simply efficient.
Increased productivity
Reliable performance
Easy to maintain
- Increased productivity enhancing speeds in both laden and unladen condition.
- Range of battery sizes to suit different application levels.
- Quick change lateral battery extraction for lower downtime.
- Wide range of driving wheels available for different applications.
- Wide range of fork combinations to suit different applications.
- Intelligent LiftTM option combines travel and lifting for faster load handling.
- Robust chassis design in line with the Class III range improves protection.
- Higher ground clearance of pull rods helps to avoid damage when travelling on ramps.
- Bushing design improves wear and tear resistance.
- Suspended MDU shock absorption reduces stress on the frame and electronic components.
- Dual processors controller for increased reliability.
- Smooth motor cover for ease of cleanliness and reduced dirt retention.
- Powerful traction motor increases performance and productivity.
- Battery cover protects from falling objects.
- Service intervals of 1000 operating hours.
- Easy to replace most exposed parts.
| Model | Load Capacity | Lift Height | Turning Radius | AST (wide / long) | Battery Capacity | Overall Width | Weight |
|---|---|---|---|---|---|---|---|
| MO20X | 2000kg | 120mm | 2374mm | 2985mm | 24V / 375Ah(V/Ah) | 750mm | 807kg |
| MO25X | 2500kg | 120mm | 2374mm | 2985mm | 24V / 375Ah(V/Ah) | 750mm | 824kg |
| MO30X | 3000kg | 120mm | 2374mm | 2985mm | 24V / 375Ah(V/Ah) | 750mm | 824kg |
Yale Vision telemetry
Complete fleet visibility and control
Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
Value-added services
Lift trucks are only part of our solution
Our value-added services are designed to help you get the most out of material handling investments.
