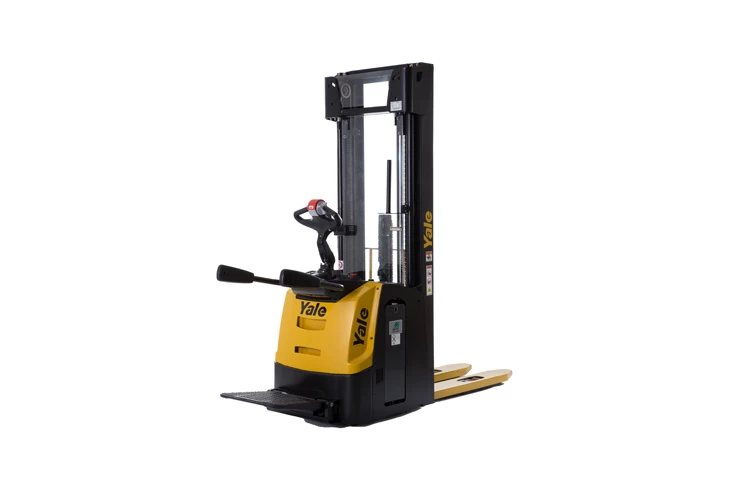

Platform High Lift Stacker

The manoeuvrability of a stacker with the travel speed of a ride-on

Models
MS12-20X
Capacity
1000-2000kg

Dual purpose warehouse machines with folding platform for pedestrian and rider operation

  • Ride-on or pedestrian operation
  • Initial lift
  • Ergonomic tiller head
  • Powered assisted steering
  • Adjustable pull rods
Downloads
Industry Sectors

- Food Distribution and Processing
- Warehouse & 3PL
- Wholesale Distribution
- Home Centers
- Retail & E-Commerce (DC/fulfillment)
- Retail Store Operations
- Furniture & Furnishings
- Auto Parts Distribution
- Health & Pharma

Start a Quote

Interested in more information on this truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a Quote

The MS12-20X series of platform trucks offer excellent operator ergonomics and productivity. With high visibility masts, dual lift and lower controls, low effort power steering and speed reduction on cornering.

The MS12-20X IL platform stacker is ideal for double pallet handling and suitable for operation in short or long distance transfer applications and on ramps or gradients.

Ride-on or pedestrian operation

The large operator platform allows the operator to find their ideal driving position for maximum application flexibility. Foldable side arms are relative to the level of the platform providing the operator with maximum comfort and stability.

Initial lift

The initial lift increases the distance from the ground, allowing transfer on irregular surfaces, loading levels and ramps. Speed is automatically reduced with forks raised.

Ergonomic tiller head

The tiller head and handle features an ergonomic shaped handle and integral hand guard. Large, low-effort, butterfly buttons control direction of travel, speed and the electromagnetic brake - all without the operator’s hand moving from the handle. Left hand buttons operate slow speeds for fine positioning, right hand buttons control proportional lifting and lowering, the horn is on top.

Powered assisted steering

The electric motor completely eliminates steering effort, making the truck light and easy to steer in all working applications.

Adjustable pull rods

The adjust able pull rods give uniform lifting and lowering movement of the forks. The loading rollers are tandem with lubrication points and sealed bearings. The speed of the truck is automatically reduced when the load arms are raised.

Model Load Capacity Lift Height AST (wide / long) Battery Capacity Weight
MS16X IL (stand-on) 1600kg 2800mm 2595 / 2582mm 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) 1267kg
MS12X (stand-on) 1200kg 3200mm 2870 / 2836mm 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) 1100kg
MS14X IL (pedestrian) 1400kg 2800mm 2524 / 2511mm 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) 1191kg
MS14X (stand-on) 1400kg 3200mm 2870 / 2836mm 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) 1130kg
MS12X IL (pedestrian) 1200kg 2800mm 2524 / 2511mm 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) 1191kg
MS20X (stand-on) 2000kg 3000mm 2534 / 2500mm 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) 1243kg
MS16X SL (pedestrian) 1600kg 3200mm 2619 / 2605mm 24V / 315-375Ah (V/Ah) 1523kg
MS12X (pedestrian) 1200kg 3200mm 2463 / 2429mm 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) 1100kg
MS12X IL (stand-on) 1200kg 2800mm 2932 / 2919mm 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) 1191kg
MS14X IL (stand-on) 1400kg 2800mm 2932 / 2919mm 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) 1191kg
MS16X IL (pedestrian) 1600kg 2800mm 3002 / 2990mm 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) 1267kg
MS14X (pedestrian) 1400kg 3200mm 2463 / 2429mm 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) 1130kg
MS16X (pedestrian) 1600kg 3200mm 2534 / 2500mm 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) 1240kg
MS16X (stand-on) 1600kg 3200mm 2942 / 2908mm 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) 1240kg
MS20X (pedestrian) 2000kg 3000mm 2942 / 2908mm 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) 1243kg
MS16X SL (stand-on) 1600kg 3200mm 3034 / 3020mm 24V / 315-375Ah(V/Ah) 1523kg
