Electric Straddle Stacker
Superior stacking and reliability on the loading dock
- Models
- MSW025F-30F-MSW040E
- Capacity
- 1134-1820kg

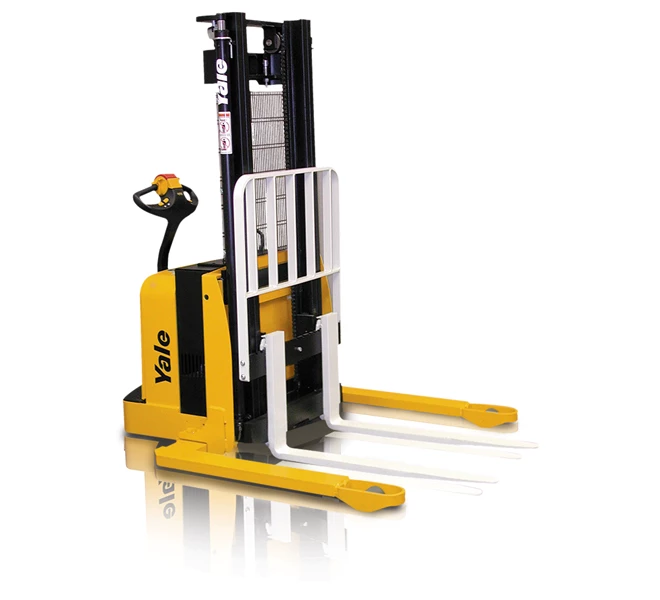

The MSW-E straddle stacker excels in applications where space is tight and you need a 2,500-4000-pound capacity to get the job done.
- Ergonomic design
- Built for productivity
- Maintenance friendly
Precision you need for tight operating environments
Ergonomic design
Built for productivity
Maintenance friendly
The Yale straddle stacker comes with key ergonomic features to reduce operator fatigue and keep them productive all shift long.
- Bottom-mounted tiller handle optimizes operating position and keeps steering effort low
- Centralized controls, with all functions located within easy reach on the handle
- Wraparound traction reversing switch provides large area of contact for secure, precise control
- Rotary throttle control offers maximum tactile feel
- Hi-Vis mast offers wide range of view to help operators maintain maximum control in tight spaces
The MSW-E not only helps keep operators fresh, it comes with features designed to help them get the most productivity out of every shift.
- Three performance modes enable operators to tailor truck performance to real-time demands
- Two battery compartment sizes allow operations to match battery and application requirements
- Stationary, separately activated drive motor and advanced transistorized hoist and traction controller to enhance truck performance
- Creep speed control (optional) improves maneuverability in tight spaces
- Auto Deceleration System reduces the need to manually apply service brake, activating when operators simple return throttle to neutral
Easy service access and maintenance help you spend more time moving product and less time out of service. The MSW-E is designed to make this happen, with several key features to allow easy service access and reduce maintenance requirements.
- Single power contactor reduces components that require service
- Integrated steer bearing and string guard in drive unit enable low maintenance
- Multi-function display (optional) provides batter charge state, truck hours, fault codes and lift interrupt warning
- Translucent hydraulic tank allows quick inspection of oil level
- Compartment cover is easy to remove for simple service access
| Model | Load Capacity | Lift Height | Battery Capacity | Weight |
|---|---|---|---|---|
| MSW025F | 1134kg | 3200mm | 24V / 150Ah(V/Ah) | 1902kg |
| MSW030F | 1361kg | 3200mm | 24V / 150-255Ah(V/Ah) | 2230kg |
| MSW040E | 1820kg | 3200mm | 24V / 255-510Ah(V/Ah) | 2493kg |
