Electric Reach Forklift
Reach Trucks with Moving Masts
- Models
- FBR13-18S(W)Z
- Capacity
- 1250-1800kg

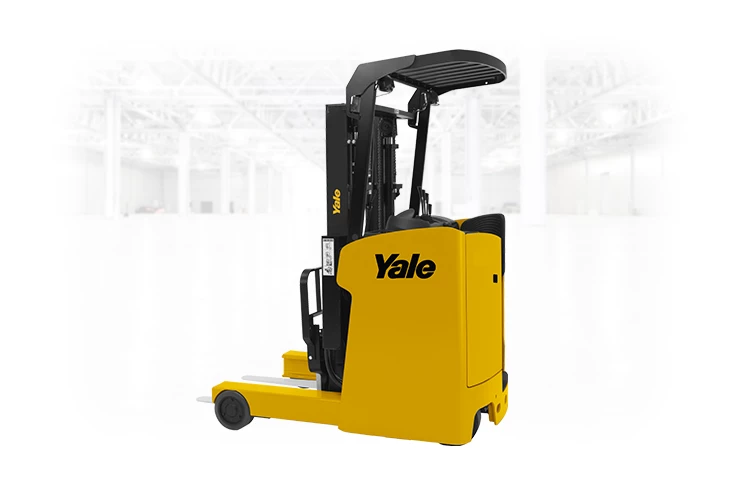

The Yale® FBR13-18S(W)Z is available with a 1,250-1,800-kg load capacity and offers the following benefits ideal for a range of warehousing applications.
- Visor-integrated display
- Surround cockpit
- High back support
- Lowered floor
- Travel & load handling interlock
- Speed reduction on cornering
- Anti-rollback & descent control
- Front wheel brake anti-skid control
- Low vibration suspension system
High performance with Yale sit down reach truck

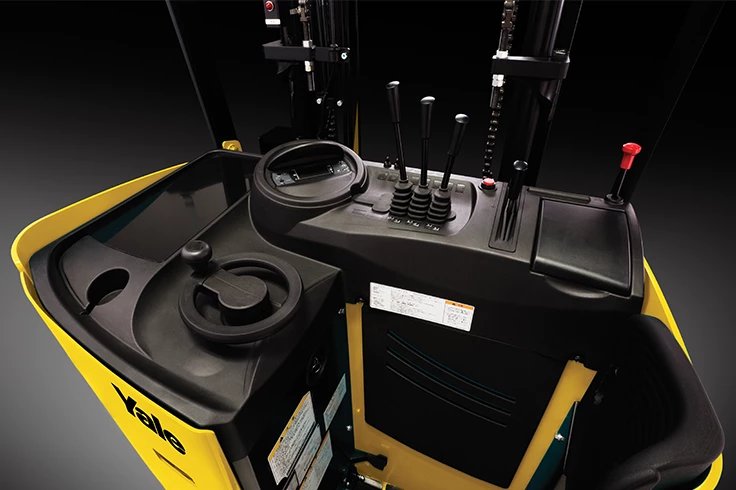

Visor-integrated display
Surround cockpit
High back support
Lowered floor
Travel & load handling interlock
A visor has been added to the top of the display to prevent reflected glare and improve visibility.
A round shaped operator space which wraps flexibly around the operator has been adopted while maintaining the easy-to-operate lever type layout.

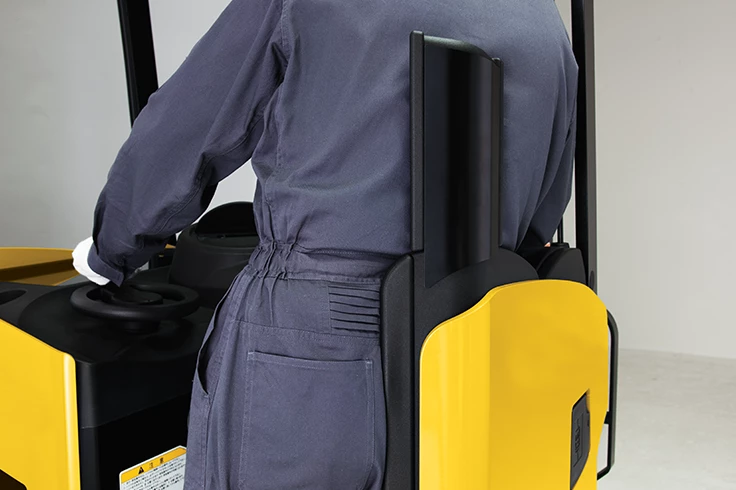

A high back support helps to support the shoulders from the sides. Support during switchbacks from reverse to forward is provided and fatigue during normal operation is reduced.
Low 250mm floor height (35mm lower than previous models) helps reduce operator fatigue in work with frequent on-off application.
Travel and load handling operations are locked (disabled) when the operator leaves the operator compartment.
| Model | Load Capacity | Turning Radius | Battery Capacity | Overall Width |
|---|---|---|---|---|
| FBR13SZ | 1250kg | 1495mm | 48V / 210Ah(V/Ah) | 1090mm |
| FBR15SZ | 1500kg | 1580mm | 48V / 280Ah(V/Ah) | 1090mm |
| FBR15WZ | 1500kg | 1755mm | 48V / 280Ah(V/Ah) | 1190mm |
| FBR18SZ | 1800kg | 1755mm | 48V / 280Ah(V/Ah) | 1090mm |
| FBR18WZ | 1800kg | 1755mm | 48V / 280Ah(V/Ah) | 1190mm |
Yale Vision telemetry
Complete fleet visibility and control
Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
Yale Power Suite
Unlock the True Power of Your Operation
Yale Power Suite has the industry’s widest range of power sources from a variety of brands, so you get the best solution available to maximize your operations. Our team has deep industry knowledge about forklift power sources to evaluate your application and recommend the power source that gives you the best return on your investment.
