TRUK PALET PLATFORM

Horizontal pallet transport designed around the operator

The Yale® MP20XV is built for efficient movement of loads at every stage of horizontal pallet handling, helping operators work comfortably and productively throughout their shift.

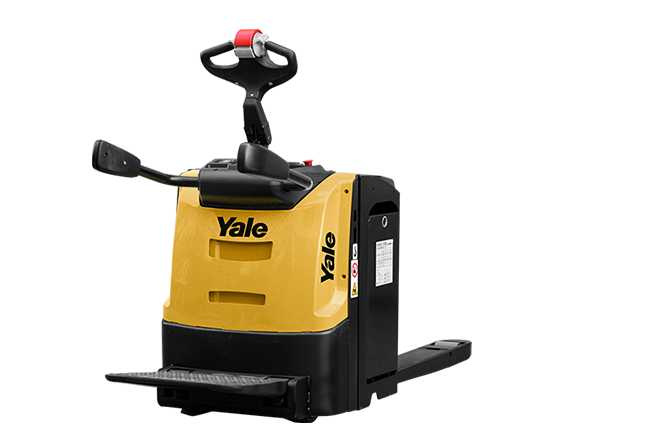

product image

Model

MP20XV

Kapasitas beban

2000kg

Configurable platform pallet truck for pallet transport

Move pallets smoothly and efficiently through fast paced operations

Produktivitas

The platform pallet truck is designed to deliver the performance your operation demands with configuration options to help tailor it to your application.

  • Available in different battery compartment sizes and lithium-ion options to support your preferred charging strategy and duty cycle.
  • Operators can select the drive mode that best fits their skill level and the task.
  • With the Smart Lift function, operators can raise the pallet at the push of a button while continuing to travel, significantly improving work efficiency.
  • Two drive wheel options available for various application requirements to optimize traction for distance runs, ramps, uneven surfaces, or wet floors.
  • Optional work lights improve visibility in dim trailers, docks, or shadowed storage areas.
  • Pedestrian awareness lights are designed to alert pedestrians and operators to approaching equipment and the direction of travel, enhancing visibility in high-traffic aisles.
Operator-focused design

Built around comfort and ease of use, the MP20XV is designed to help operators work more efficiently.

  • Cushioned sprung platform with a rubber grip mat reduces vibration to maximize operator comfort. The large platform features an operator presence sensor, preventing truck operation when no operator is present.
  • Ergonomic tiller designed to provide an ergonomic steering position even in a tight operating space, enhancing controllability and maneuverability functions.
  • Thoughtful control placement keeps critical functions within easy reach.
  • Turtle mode for precise positioning and controlled low speed handling.
  • Multifunction display delivers clear battery, error, and hour meter information at a glance.
Layanan yang disederhanakan

Minimize interruptions with a system designed for durability and service simplicity.

  • Common components used across the Yale lineup streamline technician familiarity.
  • Technicians can diagnose issues and prepare maintenance efficiently with clear, easy to read error codes. Tidak diperlukan diagnostik berbasiskan komputer





Resources

Spesifikasi Umum

Model Kapasitas beban Pusat Beban Angkat Tinggi Radius Putar Kapasitas baterai Bobot
MP20XV 2000kg 600mm 120mm 1795mm 24 / 375(V/Ah) 753kg

Temukan truk yang sesuai dengan tujuan penggunaan Anda

Jelajahi model lainnya
Model Kapasitas beban Pusat Beban Angkat Tinggi Radius Putar Kapasitas baterai Lebar Keseluruhan Bobot
MP20XV 2000kg 600mm 120mm 1795mm 24 / 375(V/Ah) 750mm 753kg
