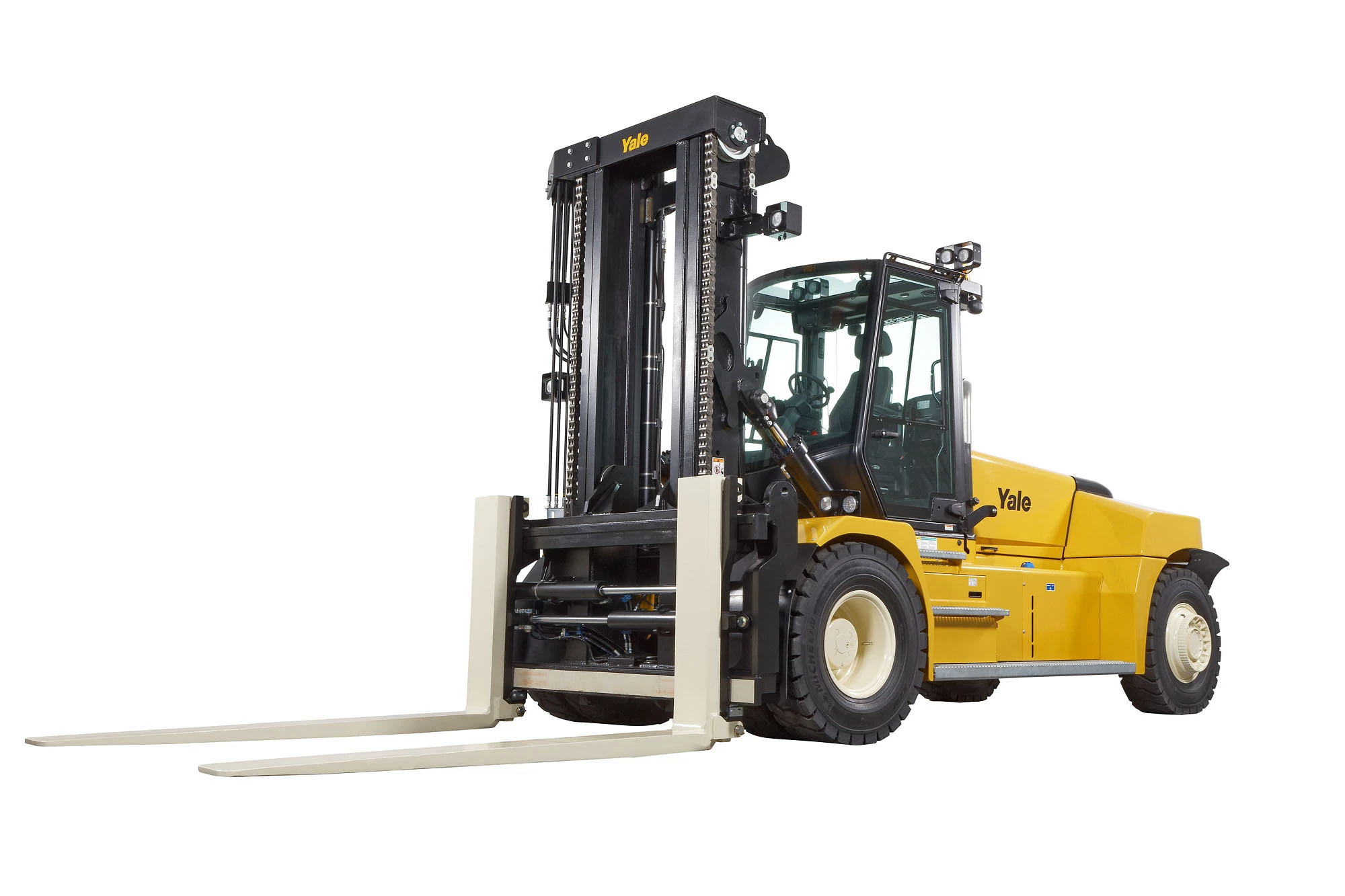

The GDP80-160DF/EF delivers a combination of ergonomics, power and durability in a robust platform designed for the most demanding duty cycles in paper, forest products, metals, produce, concrete and other industries.

  • Efficient performance
  • Operator comfort
  • Maximum productivity
  • Service and dependability
Industry Sectors

- Building Materials
- Wood & Lumber
- Mining, Energy & Construction
- Ports & Terminals (Intermodal/Container Yards)

Start a Quote

Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.

Start a quote


All-day productivity in heavy-duty applications

Efficient Performance

In heavy duty applications, you need a lift truck with the power to get through the toughest challenges while avoiding high running costs.

  • Stage V compliant engine with all the benefits that come with it. Such as combining a Selective Catalytic Reduction (SCR), a Diesel Exhaust Fluid (DEF) like AdBlue® and a Diesel Particulate Filter (DPF).The Tier 4 Final after-treatment package offers cooled Exhaust Gas Recirculation (EGR), a Selective Catalytic Reduction system (SCR) for NOx reduction, a Diesel Oxidation Catalyst (DOC) for Particulate Matter (PM)
  • For easy access and heat rejection, both after-treatment units are packed in one box and conveniently positioned on the outside of the truck.
  • All this allows for compliance to the Stage V requirement without compromising on the Yale promised performance.
Operator comfort

The DF/EF series is designed to keep operators comfortable and focused, for lasting productivity.

  • Low step heights for easy entry and exit
  • Low noise thanks to vibration dampeners for the powertrain
  • High, open carriage and mast sections offer unobstructed view of fork tips
  • Optional foot directional control pedal for quicker, smoother control of travel direction
  • Optional Accutouch mini-lever e-hydraulic controls accompany the adjustable armrest for low-effort, fingertip control of hydraulic functions and horn
Maximum productivity

The DF/EF series delivers the performance you need to meet the highest performance benchmarks in tough duty cycles.

  • Automatic throttle up provides automatic response to lift inputs from the operator when the lift lever is activated, with a controlled rev-up to keep the engine in the most efficient operating range
  • Maximum travel speed of upto 30 km/hr (subject to model)
  • Fast lifting and lowering speeds
Service and dependability
  • The DF/EF series offers the build quality, smart features and serviceability to keep performing, shift after shift.
  • Sideways tilting cab offers unobstructed access to the engine and key components
  • CAN bus connections help to reduce fault identification time
  • Longer service intervals increase uptime and reduce service costs.
  • Sturdy mast design
  • Engine protection system monitors coolant, air intake temperatures and oil pressure
  • Transmission system monitors pressure, temperature and forward/reverse lockout during changes in direction
  • Efficient hydraulic system does not require engine speeds to run as high to extend component life
  • Quad-cooler radiator design channels only cool air, not preheated air, across cores
Model Load Capacity Load Centre Lift Height Turning Radius Overall Width Weight
GDP80DF 8500kg 600mm 7000mm 5731mm 2541mm 13270kg
GDP90DF(L) 9500kg 600mm 7000mm 4111mm 2541mm 13535kg
GDP90DF 9500kg 600mm 7000mm 5731mm 2541mm 13804kg
GDP100DF(S) 10500kg 600mm 7000mm 5920mm 2541mm 14883kg
GDP100DF 10500kg 600mm 7000mm 4637mm 2541mm 14470kg
GDP120EF12 12500kg 1200mm 7000mm 4953mm 2541mm 19754kg
GDP120DF 12500kg 600mm 7000mm 4637mm 2541mm 15882kg
GDP130EF(S) 13500kg 600mm 7000mm 4637mm 2541mm 18629kg
GDP140EF 14500kg 600mm 7000mm 4637mm 2541mm 18483kg
GDP140EF(S) 14500kg 600mm 7000mm 4637mm 2541mm 19328kg
GDP160EF(S)12 16400kg 1200mm 7000mm 4968mm 2541mm 23461kg
GDP160EF12 16400kg 1200mm 7000mm 5200mm 2541mm 22681kg
GDP160EF 16500kg 600mm 7000mm 4637mm 2541mm 19459kg

Yale Vision telemetry

Complete fleet visibility and control

Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
