Pedestrian Low Lift Pallet Truck

Pedestrian Low Lift Pallet Truck

Smart, swift, and dependable


Smart, swift and dependable low lift pallet trucks with a proven track record in confined and congested areas

  • Ergonomic tiller
  • MOSFET Control
  • Heavy duty forks and frame
  • Yale Smart Lift™
  • Less downtime
Industry Sectors

- Auto parts distribution
- Beverage
- Retail & e-commerce
- Food distribution

Start a Quote

Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.

Start a Quote

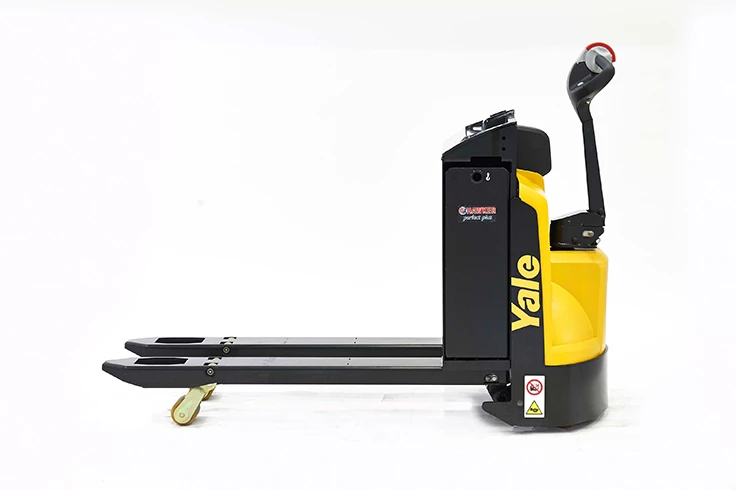

Working effortlessly and efficiently even in the smallest spaces, the MP16-22 is designed around the needs of the operator and offers intelligent ergonomics and unrivalled manoeuvrability.

The MP Series pedestrian low lift pallet trucks combine the latest in state-of-the-art technology and ergonomic design.

Ergonomic tiller

The forklift industry’s largest tiller arm run zone is ideal for a wide variety od applications. Ergonomically designed for minimum wrist movement effort, the mid-mounted control tiller arm reduces operator fatigue.

MOSFET Control

The MOSFET high frequency controller is used to regulate traction and pump operation. Energy efficient, smooth progressive control is available at all times.

Heavy duty forks and frame

The heavy duty, formed, boxed-in, steel forks are fabricated for strength and robustness. An integrated fork torsion box, heavy duty torsion bar and linkage all work together to reduce torsional twisting and load sway.

Yale Smart Lift™

Exclusive Yale Smart Lift™ enables the operator to lift loads and start transporting the pallet before it’s at full lift.

Less downtime

CAN bus Communications, Hall Effect Sensors, Proximity Switches and Transistor Controller are incorporated into the design, reducing the number of wires, connectors switch and contactors.

Model Load Capacity Lift Height AST (wide / long) Battery Capacity Weight
MP16 1600kg 130mm 1718 / 1918mm 24V / 150-375Ah | Li-ion 24V / 50-100Ah(V/Ah) 545kg
MP18 1800kg 130mm 1718 / 1918mm 24V / 150-375Ah | Li-ion 24V / 50-100Ah(V/Ah) 545kg
MP20 2000kg 130mm 1718 / 1918mm 24V / 150-375Ah | Li-ion 24V / 50-100Ah(V/Ah) 632kg
MP22 2200kg 130mm 1780 / 1980mm 24V / 150-375Ah (V/Ah) 632kg

Yale Vision telemetry

Complete fleet visibility and control

Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.

See the difference

Yale Power Suite

Unlock the True Power of Your Operation

Yale Power Suite has the industry’s widest range of power sources from a variety of brands, so you get the best solution available to maximize your operations. Our team has deep industry knowledge about forklift power sources to evaluate your application and recommend the power source that gives you the best return on your investment.

Learn more

Find the right truck to suit your application

Explore more models
