Handles heavier loads without moving to larger equipment. Ideal for narrow aisles, busy docks and confined spaces

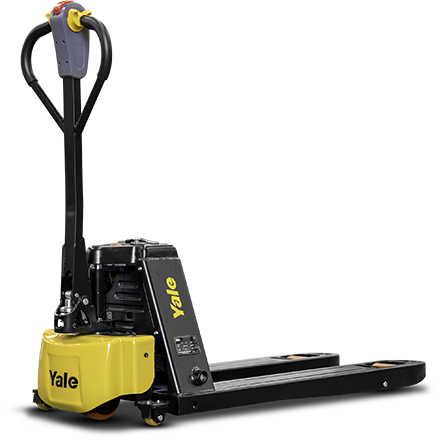

Compact Pallet Trucks
More Power in Less Space
The Yale compact pallet truck helps operations move more with less space. With increased capacity, powered travel, lifting and lowering, lithium-ion efficiency and smooth control, it supports productive load handling in tight, dynamic environments.
Productive Movement in Tight Spaces
Reduces handling cycles, accelerates internal logistics and improves workflow efficiency in fast-moving operations.
Lithium-ion battery and brushless drive motor help reduce maintenance needs while supporting dependable daily operation.
Caster wheels support enhanced stability, load control and maneuverability for consistent performance in tight environments.
Robust, simple construction with a heavy-duty steel frame, protective cover and quick drive-wheel replacement to maximize uptime.
Galvanization supports corrosion protection, longer equipment life, reliability in harsh applications and improved cleanability.
Resources
Downloads
Specifications
| Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Battery Capacity | Weight |
|---|---|---|---|---|---|---|
| MPC1.5 | 1500kg | 600mm | 115mm | 1426mm | 48V/15Ah(V/Ah) | 125.5kg |
| MPC2.0 | 2000kg | 600mm | 115mm | 1426mm | 48V/15Ah(V/Ah) | 125.5kg |
| Model | Load Capacity | Load Centre | Lift Height | Turning Radius | AST (wide / long) | Battery Capacity | Overall Width | Weight | Engine |
|---|---|---|---|---|---|---|---|---|---|
| MPC1.5 | 1500kg | 600mm | 115mm | 1426mm | 2376mm | 48V/15Ah(V/Ah) | 685mm | 125.5kg | Electric |
| MPC2.0 | 2000kg | 600mm | 115mm | 1426mm | 2376mm | 48V/15Ah(V/Ah) | 685mm | 125.5kg | Electric |
