Cushion tire forklift  | Yale GC30-40N

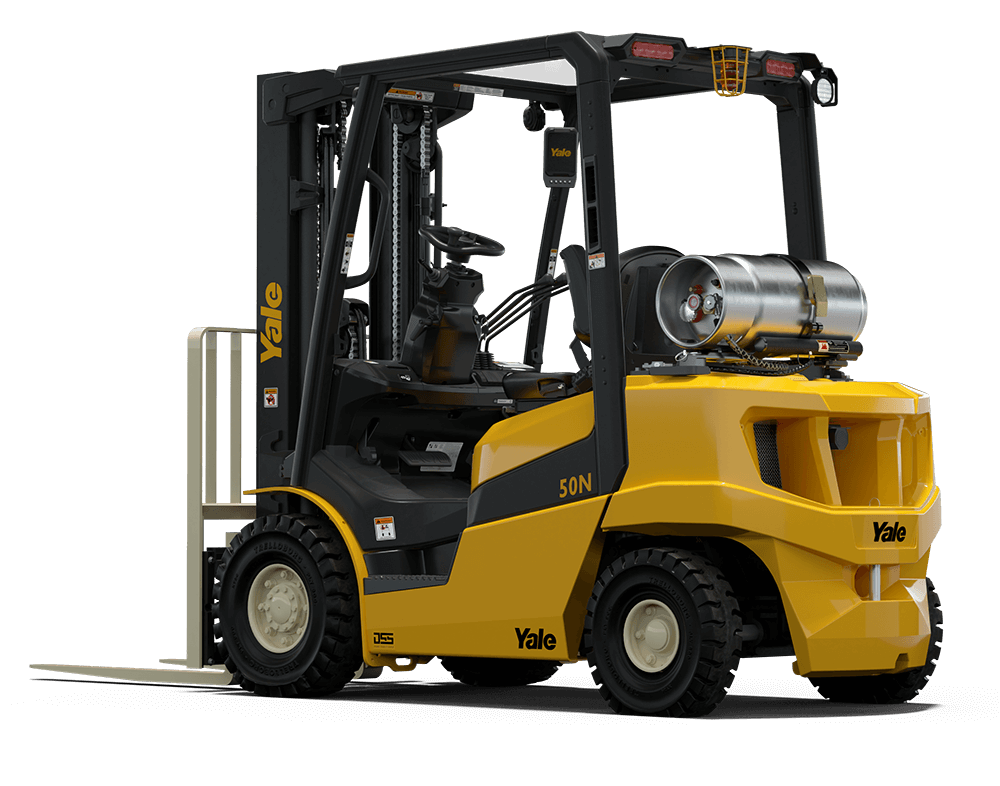

Side view of Yale GC30-40N  ICE cushion tire forklift
Cushion tire forklift | Yale GC30-40N
ICE cushion tire forklift from the rear
Angled side view of Yale GC30-40N ice cushion tire forklift
Cushion tire forklift | ICE Configurable | Yale GC30-40N
Internal combustion cushion tire forklift | Yale

Configurable design to match tour needs

Cushion tire forklift


Built on a scalable platform, the Yale Series N can be easily configured to match your unique requirements. With a 3,000–4,000 lb. capacity range, the GC30-40N will raise the bar for what you expect from a cushion tire forklift in a wide range of applications and environments.

  • Operator-centric design
  • Safety features that boost productivity
  • Proven dependability and low cost of operation
Industry Sectors

- Warehouse & 3PL
- Home Centers
- Retail & E-Commerce (DC/fulfillment)

Start a quote

Interested in more information on this lift truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a quote

The highly configurable cushion tire forklift, Yale® Series N

Set your own forklift standard. Then lift it.

Operator-centric design

An ergonomic compartment strategically engineered around comfort and convenience, the Yale® Series N was designed to make it easy for operators to get in and out of the truck, stay comfortable and sustain less stress while seated and operating the truck.

  • Convenient entry and exit – A large, strategically located step, large grab handle, contoured hood and flip up armrests help make it easy for the operator to get in and out of the truck.

  • Spacious operator compartment – Roomy operator compartment with ample floor space and a wide range of seat adjustment helps the operator to find a comfortable position, stretch their legs, and stay comfortable for long shifts.

  • Excellent visibility – A low dash and wide mast window provide excellent visibility through the mast, enhanced visibility of fork tips and load when picking at height, and excellent visibility when traveling forward.

Safety and productivity

Maintaining a strict focus on lift truck best practices can be a challenge, but with so much riding on lift truck operator performance, building and supporting safe, effective habits through proper, comprehensive training is critical. The Series N goes a step further, with smart features and technology that offers alerts and automated assistance to operators in real time.

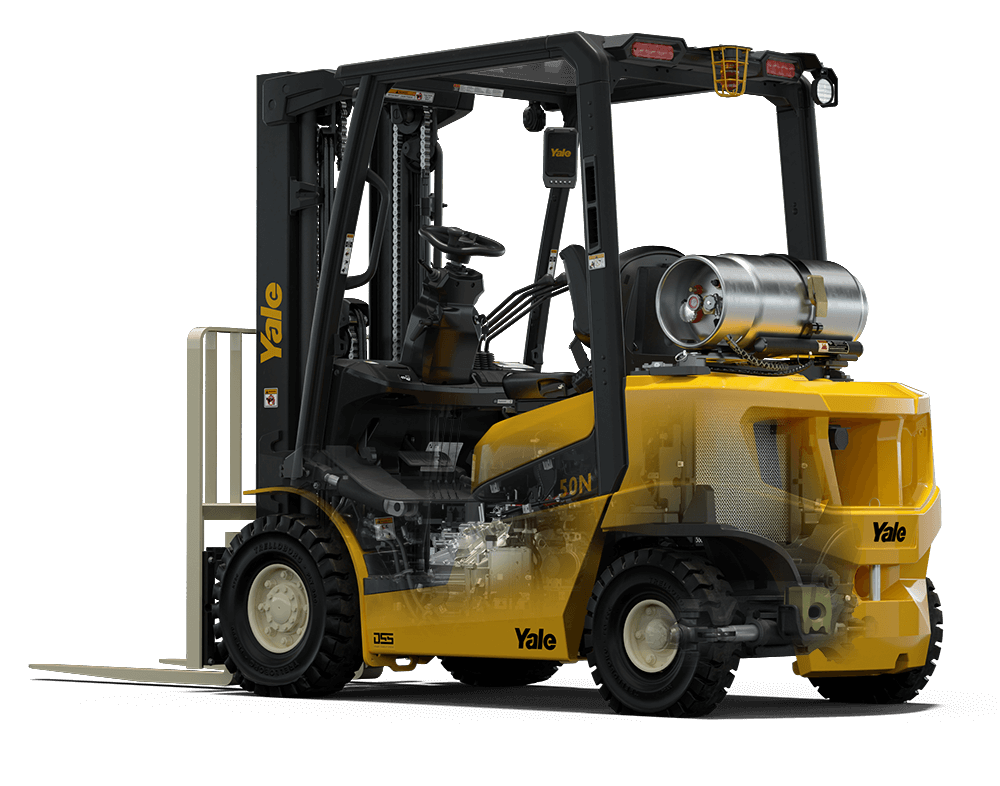

  • Dynamic Stability System (DSS) - An innovative, maintenance-free system, standard on all Series N trucks that promotes operating best practices by implementing truck performance limitations to help minimize forward and sideways tip-overs. 1
  • Operator Assistance Systems (OAS) - A suite of options designed to support the behavior and awareness of both operators and pedestrians to promote safe practices and help prevent facility and product damage.1
Dependability and TCO

Harsh duty cycles and challenging environments can threaten uptime, and you need equipment proven to stand up and deliver, shift after shift. The Series N helps protect your bottom line with features engineered to minimize unplanned downtime, simplify service and lower fuel costs.

  • Heavy-duty industrial Yanmar engine - Utilizes a heavy-duty EPA-certified Yanmar 2.2L LPG engine designed with extended preventive maintenance service intervals for continuous, heavy use.
  • Dependable high performance technology - Engineered with a reliable, aluminum transmission and robust steer axle with tapered roller bearings to help minimize downtime and simplify service.

1 While lift truck systems support safe operation and help minimize the potential for tip overs, proper operation of the lift truck and 100% full-time utilization of the truck’s seat belt are the primary and best means of keeping the truck and operator upright and safe. Refer to the operator and service manuals for proper operation and maintenance.

Model Load Capacity Load Center Lift Height Turning Radius Overall Width Engine Type Transmission
GC30N 3000lbs 24in 228 70.1 37.4 Yanmar 2.2L LPG Electric powershift
GC35N 3500 lbs 24in 228 71.5 37.4 Yanmar 2.2L LPG Electric powershift
GC40NS 4000lbs 24in 228 72.8 37.4 Yanmar 2.2L LPG Electric powershift

Reverse_GSA Advantage_only_2020.jpg

The GSA creates a centralized location for the federal government, offering products, services, and facilities needed for federal agencies to serve the public. As a GSA certified company, Yale supports the GSA’s mission to provide innovative solutions for federal agencies with cost-effective and high-quality products. You can also find more information on the General Services Administration at

Support throughout the lift truck life cycle

Knowledgeable, reliable dealers make all the difference

When it comes to collaborating with a lift truck dealer, you can’t settle – you need dealers wholly focused on your success. When you purchase equipment or technology solutions from Yale Lift Truck Technologies, you gain access to our independent dealer network. “Independent” means our dealers are not constrained by factory ownership or corporate red tape.

Our dealers are entirely focused on fulfilling your needs

  • A seamless experience, from order to factory to ongoing support
  • Effective recommendations and responsive support, from parts, maintenance and
    emergency services to fleet management, rental trucks and operator training.
  • Expertise and guidance on special features and allied products and services for your
    warehouse, like racking, guarding and safety equipment.
  • Assistance with financing options.

Yale Vision telemetry

Complete fleet visibility and control

Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
