Pantograph reach truck for vertical storage
Maximize cubic storage volume with vertical storage
Models
NR/NDR-DC/EC
Capacity
3000-4500lbs
Yale reach truck forklifts, including the narrow aisle and reach truck with moving mast, are engineered for productivity in applications that demand high storage density and material handling throughput. Reach trucks, which are designed with forks that can extend not only upward but also forward, are primarily used for pallet storage and retrieval in warehouses or retail environments with narrow aisles of tall racking that require loads to be placed in double-deep or high-level storage locations. Whether picking or putting away pallets in locations at great height or navigating tight, efficient facility layouts, Yale reach trucks are designed to help operators move and store product with efficiency and precision.
The lineup ranges in capacity from 3,000 to 5,500 pounds and includes lead acid, thin plate pure lead and lithium-ion battery options.

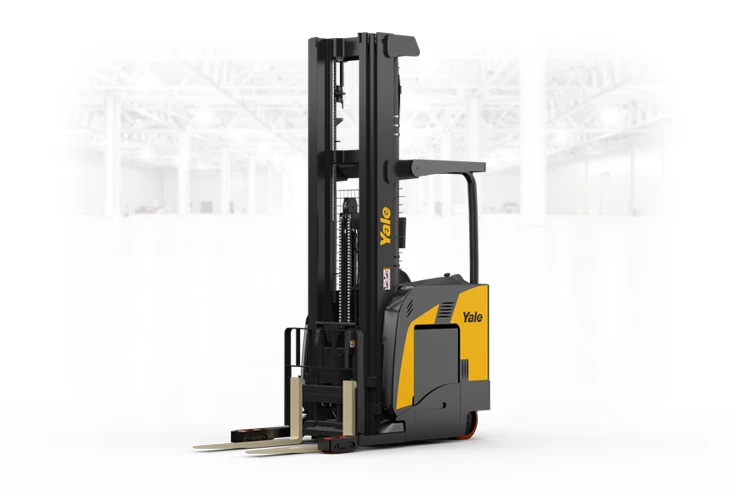

Models
NR/NDR-DC/EC
Capacity
3000-4500lbs

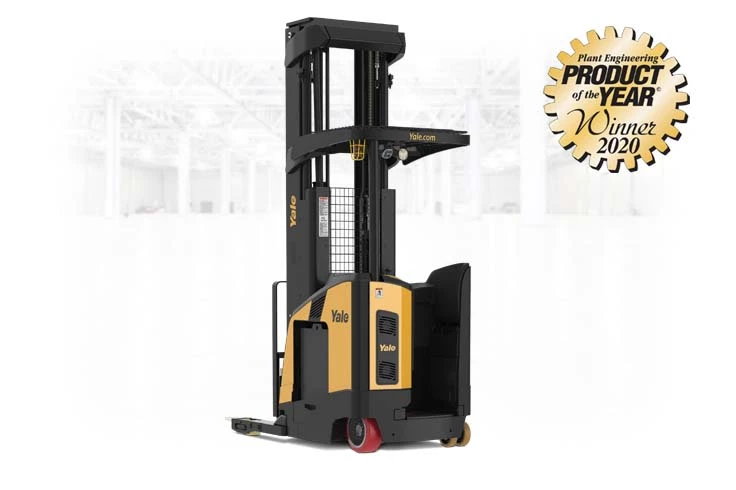

Models
NR045EB, NDR035EB
Capacity
3500-4500lbs
Models
MR14-25A
Capacity
3000-5500lbs

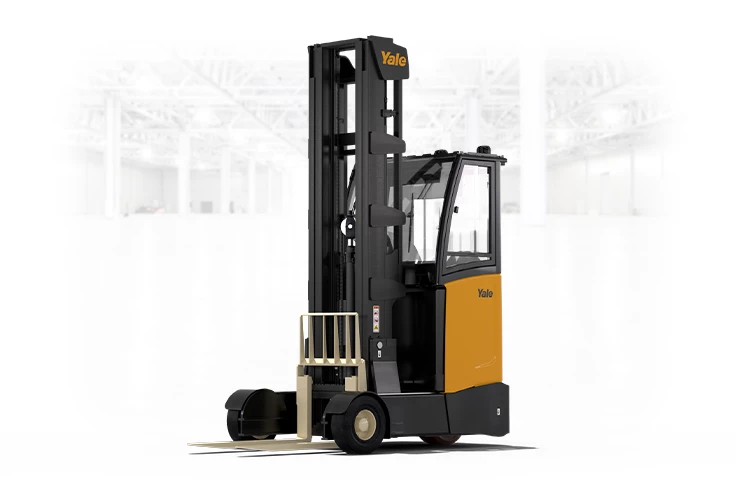

Models
MRO16-20
Capacity
3500-4500lbs
Our reach trucks are now available with accelerated lead times. But hurry, near-term build slots are going fast.
A reach truck is a warehouse lift truck designed to store and retrieve palletized loads at height in narrow aisles. Its mast or fork carriage can extend toward the rack while the truck maintains a compact warehouse footprint.
A counterbalance forklift carries the load in front of the truck. A reach truck is designed primarily for racked storage and can extend the forks or mast toward the load. Selection depends on aisle width, surface, lift height, load and environment.
A single-reach forklift places and retrieves pallets one position deep in racking.
A single-reach truck serves pallets one position deep. A double-reach truck can access a second pallet position in double-deep racking. The truck, rack layout, loads and visibility requirements should be evaluated together.
