Reliable solution
Heavy duty forklifts for outdoor applications
- Models

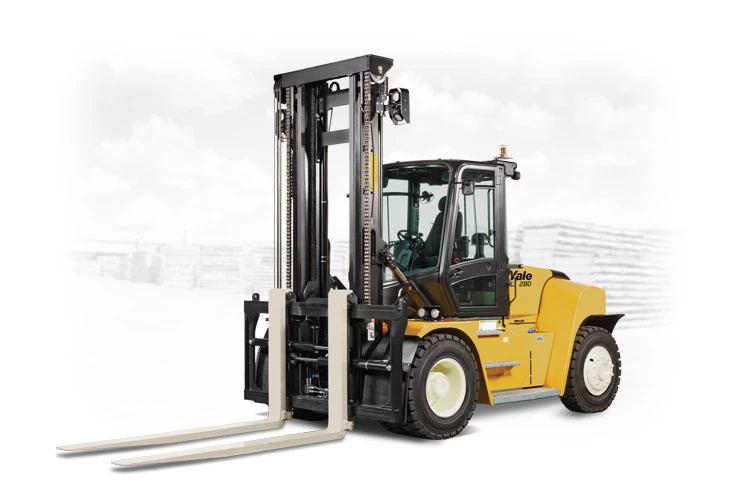

- GP190-280DF
- Capacity
- 19000-28000lbs
The GP190-280DF is designed for heavy-duty operating conditions in produce, paper, forest products, metals and concrete.
- Efficient performance
- Operator comfort
- Maximum productivity
- Service and dependability
Forklifts engineered for demanding outdoor applications
Efficient performance
Operator comfort
Maximum productivity
Service and dependability
In heavy duty applications, you need a lift truck with the power to get through the toughest challenges while avoiding high running costs.
- Cummins turbo diesel engine pairs with ZF WG 161 transmission, optimized for maximum performance and fuel economy
- The Tier 4 Final after-treatment package offers cooled Exhaust Gas Recirculation (EGR), a Selective Catalytic Reduction system (SCR) for NOx reduction, a Diesel Oxidation Catalyst (DOC) for Particulate Matter (PM) removal, and a Diesel Exhaust Fluid (DEF) dosing module
- ECO Modes control maximum engine RPM and throttle response for balance of performance and fuel savings
- On-demand hydraulic system can result in 10% lower fuel consumption - $2,250 per year at $2.50/gal
- Empty seat engine shutdown turns off the truck when the operator is out of the seat for a selectable 3-15 minute window, limiting idle hours on the truck
- On-demand cooling uses viscous drive cooling fan that draws power only when cooling is required - unlike a direct drive fan
The GP-DF series is designed to keep operators comfortable and focused, for lasting productivity.
- Low step heights for easy entry and exit
- Low noise thanks to vibration dampeners for the powertrain
- High, open carriage and mast sections offer unobstructed view of fork tips
- Optional foot directional control pedal for quicker, smoother control of travel direction
- Optional Accutouch mini-lever e-hydraulic controls accompany the adjustable armrest for low-effort, fingertip control of hydraulic functions and horn
The GP-DF series delivers the performance you need to meet the highest performance benchmarks in tough duty cycles.
- Automatic throttle up provides automatic response to lift inputs from the operator when the lift lever is activated, with a controlled rev-up to keep the engine in the most efficient operating range
- Maximum travel speed of 18 mph, with load present
- Fast lifting speeds of 79 ft/min, with or without load present
- Lowering speeds of 98 ft / min with load present
The GP-DF series offers the build quality, smart features and serviceability to keep performing, shift after shift.
- Sideways tilting cab offers unobstructed access to the engine and key components
- CAN bus connections help to reduce fault identification time
- Longer service intervals increase uptime and reduce service costs. LSH oil change is up to 6,000 hours, transmission oil change interval is 2,000 hours.
- Sturdy mast design with less deflection than comparable overhead tilt products
- Engine protection system monitors coolant, air intake temperatures and oil pressure
- Transmission system monitors pressure, temperature and forward/reverse lockout during changes in direction
- Efficient hydraulic system does not require engine speeds to run as high to extend component life
- Quad-cooler radiator design channels only cool air, not preheated air, across cores
| Model | Load Capacity | Load Center | Lift Height | Turning Radius | Overall Width | Weight | Engine Type | Transmission |
|---|---|---|---|---|---|---|---|---|
| GP190DF | 19000lbs | 24in | 216 | 154.6 | 97 | 28167 | Cummims QSB 4.5L Diesel | ZF WG161 |
| GP210DF | 21000lbs | 24in | 216 | 154.6 | 97 | 28478 | Cummims QSB 4.5L Diesel | ZF WG161 |
| GP230DF | 23000lbs | 24in | 275 | 161.9 | 97 | 31770 | Cummims QSB 4.5L Diesel | ZF WG161 |
| GP230SDF | 23000lbs | 24in | 275 | 154.6 | 97 | 30767 | Cummims QSB 4.5L Diesel | ZF WG161 |
| GP250DF | 25000lbs | 24in | 275 | 161.9 | 97 | 31621 | Cummims QSB 4.5L Diesel | ZF WG161 |
| GP280DF | 28000lbs | 24in | 275 | 161.9 | 97 | 33534 | Cummims QSB 4.5L Diesel | ZF WG161 |
