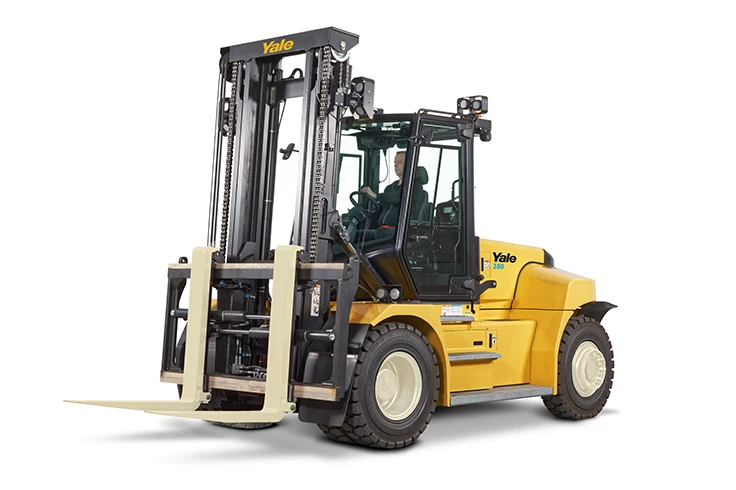

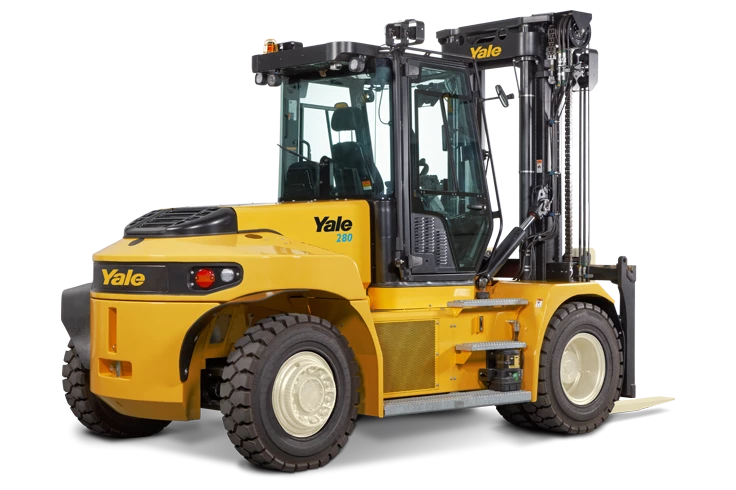

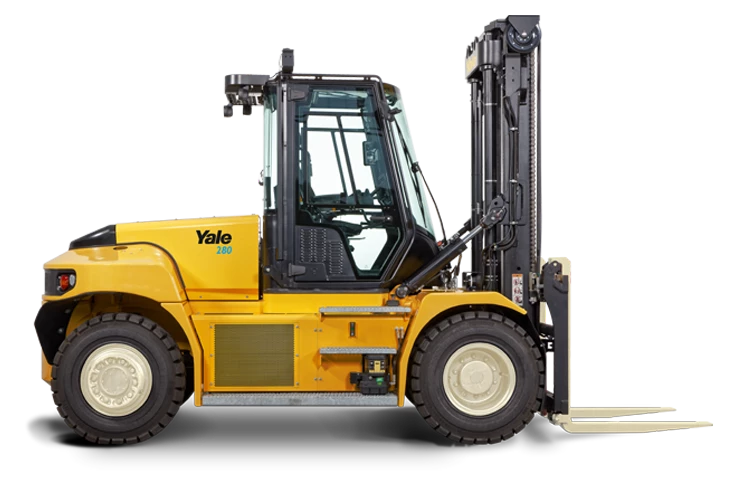

4 Wheel Electric Forklift Truck Pneumatic Tire

Integrated li-ion high-capacity electric forklift

Models
ERP230-280DF
Capacity
23000-28000lbs

High-capacity electric forklift that offers ICE-like performance for indoor and outdoor applications needing a zero-emissions solution. Available with a 23,000-28,000-pound load capacity, this 4-wheel pneumatic tire, electric counterbalanced forklift is ideal solution for both indoor and outdoor applications across many different industries driving toward decarbonization.

  • Integrated lithium-ion battery power
  • Operator comfort
  • Low cost of ownership
  • Excellent visibility
Industry Sectors

Suitable for use both indoors and outside, this series of tough electric trucks is suitable for a number of industries including steel & metals, lumber, concrete, mining, energy & construction and more.

Start a quote

Interested in more information on this lift truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a quote

Get zero-emissions with Integrated li-ion heavy duty forklift

High-capacity electric solution

Integrated lithium-ion battery power

Right-sized with an optimal 350V system providing ICE-like performance without the additional costs and complexity for the higher voltage systems in competitive offerings. The integrated lithium-ion battery solution produces zero tailpipe emissions and allows for fast charging times and opportunity charging during break times.

Operator comfort

The ERP-DF series is designed to keep operators comfortable and focused, for lasting productivity.

  • Ergonomically designed with largest cabin entry area in the industry
  • Full-color 7-inch screen displaying performance data at operators finger tips
  • Exclusive lateral sliding seat, adjustable steering column and foot pedal
  • Accutouch mini-lever e-hydraulic controls accompany the adjustable armrest for low-effort, fingertip control of hydraulic functions
Low Cost of Ownership

Minimize service time, maintenance costs and keep truck running with quick access to key components and affordable replacement parts.

  • Tilting cab provides quick and easy access to components for routine maintenance
  • Removable panels provide convenient access to high-voltage components
  • Industry leading ingress protection of the batteries, cables and wires able to withstand heavy-duty environments.
  • Lithium-ion batteries provide zero battery maintenance and fast charging times
Excellent Visibility
  • Cab equipped with armored glass top window, curved, scratch-resistant front and rear windshields and steel-framed doors with tempered glass provide operators with excellent all-around visibility
  • Sloping counterweight and integrated battery design enhances visibility of steer tires

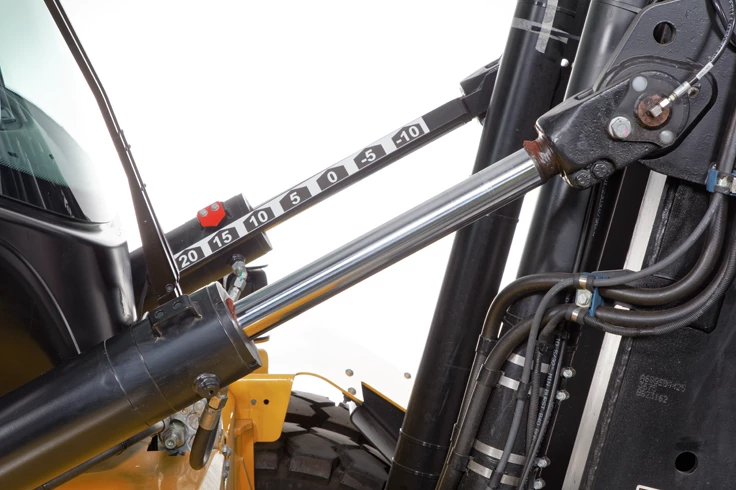

  • Open carriage design with mast chains mounted on the outside of the mast, low cowl and increased space between mast channels enable enhances forward view of the fork tips at travel and load height
Model Load Capacity Load Center Lift Height Turning Radius Battery Capacity Voltage Overall Width Weight Engine Type
ERP230DF 23000lbs 24in 147 162 350 / (192 / 384 ) 98 31398 Electric
ERP250DF 25000lbs 24in 147 162 350 / (192 / 384 ) 98 32611 Electric
ERP280DF 28000lbs 24in 147 162 350 / (192 / 384 ) 98 34374 Electric
