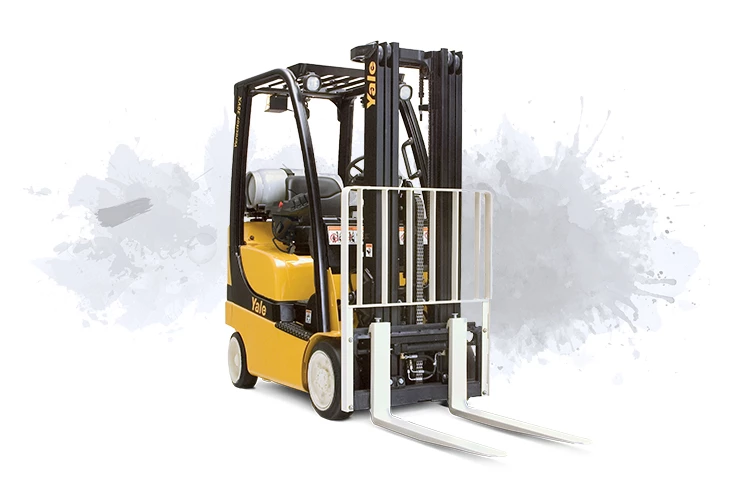

GC030-040SVX

ICE Forklift Trucks with Cushion Tires

Handle tight spaces with strong maneuverability

Models
GC030-040SVX
Capacity
1361-1814kg

The Veracitor® GC-SVX series is designed with the utmost versatility and quality for industries such as food, electronic and electrical equipment.

  • Customizable for the application
  • Ergonomic features
  • Built to last
  • Simple serviceability
Downloads
Industry Sectors

- Transporters and Freight Forwarders
- Warehouse & 3PL
- Light Manufacturing
- Paper and Forest Products
- Health & Pharma

Ask the Experts

Want more information or a quote for this product? Tell us about your application and our solutions team will be in touch to discuss your specific needs and start the quoting process.

Start a Quote

Keep Your Operation Moving

Quality and maneuverability you can depend on

Customizable for the application

Each truck in the Veracitor® VX series is customizable with packages for specific customer needs, ranging form standard- to medium- and heavy-duty applications.

Engine: PSI 2.4L LPG with Yale® Flex Performance Technology™ that allows operators to boost fuel economy or turn up performance to maximize productivity during peaks

Transmission options:

  • Standard Electronic Powershift transmission with smooth electronic inching, electronic shift control and heavy duty clutch packs
  • Techtronix 100 transmission (optional) offers all features of the standard transmission, plus controlled power reversal for reduced tire spin and fuel consumption, controlled rollback and Auto Deceleration System

Hydraulics options:

  • Cowl mounted mechanical levers offer easy reach ergonomic design, excellent right-side access
  • Accutouch mini-lever electro-hydraulics (optional) with fingertip activation, best-in-class comfort
Ergonomic features

The GC-SVX series is packed with operator-friendly features to help stave off fatigue and keep productivity high, all shift long.

  • Hi-Vis™ mast with single free lift chain for clear visibility
  • Low step height for easy entry and exit
  • Steering wheel with 12-inch diameter and infinitely adjustable steer column helps operators of all sizes find comfortable operating position
  • Isolated powertrain reduces noise and vibration
  • Continuous Stability System (CSS) reduces truck lean in turns for improved lateral stability and uses an innovative steer axle mounting for superior travel over uneven surfaces
  • Rear drive handle with horn button (optional) improves comfort in reverse operation
Built to last

The Yale Veracitor series is engineered to be among the most dependable equipment available, with a rugged powertrain and enhanced monitoring options.

  • Innovative cooling system offers excellent airflow through optimized ducting and high-volume tunnels
  • Anti-clog radiator is completely shock-mounted for long service life
  • Reliable electronics, including sealed connectors, that enable entire truck to be pressure washed
  • Hall effect sensors and switches have magnetically operated solid state components and are completely sealed
  • Continuous Stability System is a completely maintenance-free solution, with no controllers, sensors and extra wiring
Simple serviceability

The GC-SVX series not only requires less maintenance, it's designed to make service easy when it is necessary - reducing associated time and cost.

  • Rear-opening, one-piece hood and one-piece floor plate offer excellent cowl-to-counterweight access
  • Coolant recovery bottle is easily visible for checks, and fill neck is within easy reach
  • Automatic electronic inching eliminates need for periodic adjustment
  • Auto Deceleration System reduces brake usage and maintenance
  • Coil-over-plug ignition design eliminates spark plug wires and need for periodic replacement
  • Intellix VSM vehicle systems manager (optional) continuously monitors truck functions and immediately alerts operators of service needs
  • PC-based diagnostics enable fast, accurate troubleshooting for first-time fixes
Model Load Capacity Load Centre Lift Height Turning Radius Overall Width Weight Engine Transmission
GC030SVX 1361kg 600mm 5486mm 1955mm 37mm 6159kg PSI 2.0L LPG Electronic Powershift 1-speed / Techtronix 100-speed
GC035SVX 1587kg 600mm 5486mm 1983mm 38.8mm 6591kg PSI 2.0L LPG Electronic Powershift 1-speed / Techtronix 100-speed
GC040SVX 1814kg 600mm 5486mm 1983mm 38.8mm 6971kg PSI 2.0L LPG Electronic Powershift 1-speed / Techtronix 100-speed
