MSW025F-30F-MSW040E
MSW025F-30F-MSW040E

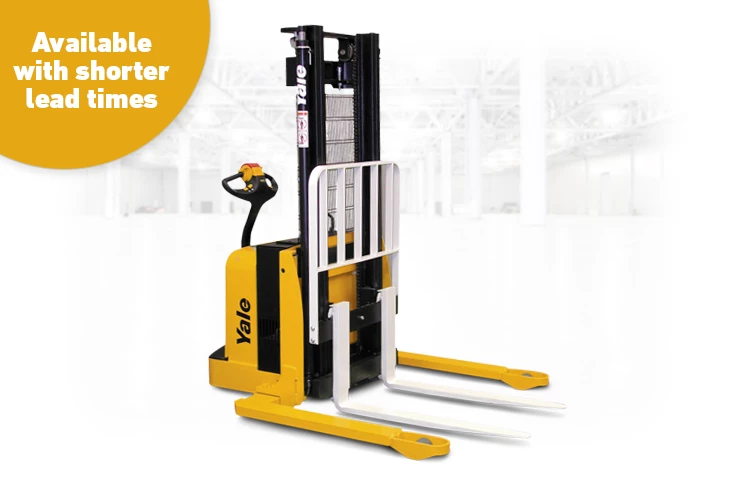

Electric Straddle Stacker

Superior stacking and reliability on the loading dock

Models
MSW025F-30F-MSW040E
Capacity
2500-4000lbs

The MSW025F-30F-MSW040E straddle stacker excels in applications where space is tight and you need a 2,500-4000-pound capacity to get the job done.

  • Ergonomic design
  • Built for productivity
  • Maintenance friendly
Industry Sectors

- Food Distribution and Processing
- Warehouse & 3PL
- Wholesale Distribution
- Home Centers
- Retail & E-Commerce (DC/fulfillment)
- Retail Store Operations
- Furniture & Furnishings
- Auto Parts Distribution
- Health & Pharma

Start a quote

Interested in more information on this truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a quote

Power Through Tight Spaces

Precision you need for tight operating environments

Ergonomic design

The Yale straddle stacker comes with key ergonomic features to reduce operator fatigue and keep them productive all shift long.

  • Bottom-mounted tiller handle optimizes operating position and keeps steering effort low
  • Centralized controls, with all functions located within easy reach on the handle
  • Wraparound traction reversing switch provides large area of contact for secure, precise control
  • Rotary throttle control offers maximum tactile feel
  • Hi-Vis mast offers wide range of view to help operators maintain maximum control in tight spaces
Built for productivity

The MSW-E not only helps keep operators fresh, it comes with features designed to help them get the most productivity out of every shift.

  • Three performance modes enable operators to tailor truck performance to real-time demands
  • Two battery compartment sizes allow operations to match battery and application requirements
  • Stationary, separately activated drive motor and advanced transistorized hoist and traction controller to enhance truck performance
  • Creep speed control (optional) improves maneuverability in tight spaces
  • Auto Deceleration System reduces the need to manually apply service brake, activating when operators simple return throttle to neutral
Maintenance friendly

Easy service access and maintenance help you spend more time moving product and less time out of service. The MSW-E is designed to make this happen, with several key features to allow easy service access and reduce maintenance requirements.

  • Single power contactor reduces components that require service
  • Integrated steer bearing and string guard in drive unit enable low maintenance
  • Multi-function display (optional) provides batter charge state, truck hours, fault codes and lift interrupt warning
  • Translucent hydraulic tank allows quick inspection of oil level
  • Compartment cover is easy to remove for simple service access
Model Load Capacity Lift Height Battery Capacity Voltage Weight
MSW040E 4000lbs 122 24V / 255-510Ah 2458
MSW030F 3000lbs 104 24V / 150-255Ah 2323
MSW025F 2500lbs 104 24V / 150Ah 2305
